Details

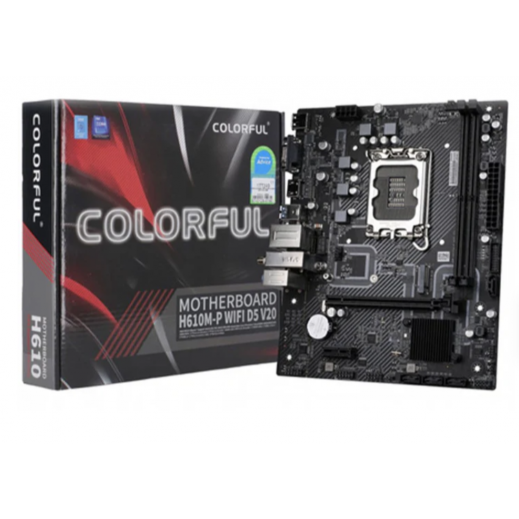

Colorful BATTLE-AX H610M-P WIFI D5 V20 DDR5 M-ATX Gaming Motherboard
- Brand: Colorful
Specifications:
- Chipset: Intel H610
- Processor: Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
- Memory:
- 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
- Paired with 13th generation Intel Core i9/i7 processors:
- Support DDR5-5600/5400/5200/5000/4800MHz memory
- Paired with 13th generation Intel Core i5/i3 processors and 12th generation Intel Core、Pentium And Cylon processors
- Support DDR5-4800MHz memory
- Supports dual channel memory technology
- SATA ports:
- 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces
- M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
- Board I/O:
- Rear I/O :
- 3×USB 2.0 interfaces
- 2×USB 3.2 Gen 1 Type-A interfaces
- 1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution
- 1×VGA interface
- 1×Gigabit network interface
- 2×Wi-Fi 6 antenna interfaces
- 3×Audio interfaces (audio input/audio output/microphone)
On board:
- 1×CPU fan pin
- 1×System fan pin
- 1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
- 1×Front audio pin
- 1×Front panel pin
- 1×Speaker pin
- 1×Clear CMOS jumper
- 1×BIOS burner pin
- 1×COM port pin
- Expansion slots:
- 1 PCIe 4.0 x16 slot
- 1 PCIe 3.0 x1 slot
- BIOS: 128M UEFI, support multiple languages
- Power management: Support S3, S4, network S5 wake-up, support scheduled startup, call startup
- Hardware monitor: CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring
- LAN: RTL8111H Gigabit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2
- Audio: Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels
- Configuration: M-ATX, 225mm x 180mm
- Supports Intel H610 chipset for system compatibility
- Dual-channel DDR5 memory support up to 5600MHz
- M.2 PCIe 3.0 slot for SSD storage
- HDMI and VGA ports for display connectivity
- Gigabit Ethernet and WiFi 6 for fast networking
- Bluetooth 5.2 support for wireless connections
- 5.1 channel audio support for enhanced sound
- Multiple USB ports for connecting peripherals
